1/2″ 110V 120V-220VAC Stainless Steel Motorized Electrical Ball Valve N/C
Specifications
| Return Shipping Will Be Paid By | Buyer |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Brand | HSH-Flo |
| MPN | Does not apply |
| Country/Region Of Manufacture | China |
| Type | Ball Valve |
| Material | Stainless Steel |
| Shape | 90° Elbow |
| Set Includes | Actuator & Valve Body |
| Features | Electric |
| Finish | Unfinished |
| Item Diameter | 0.5 in |

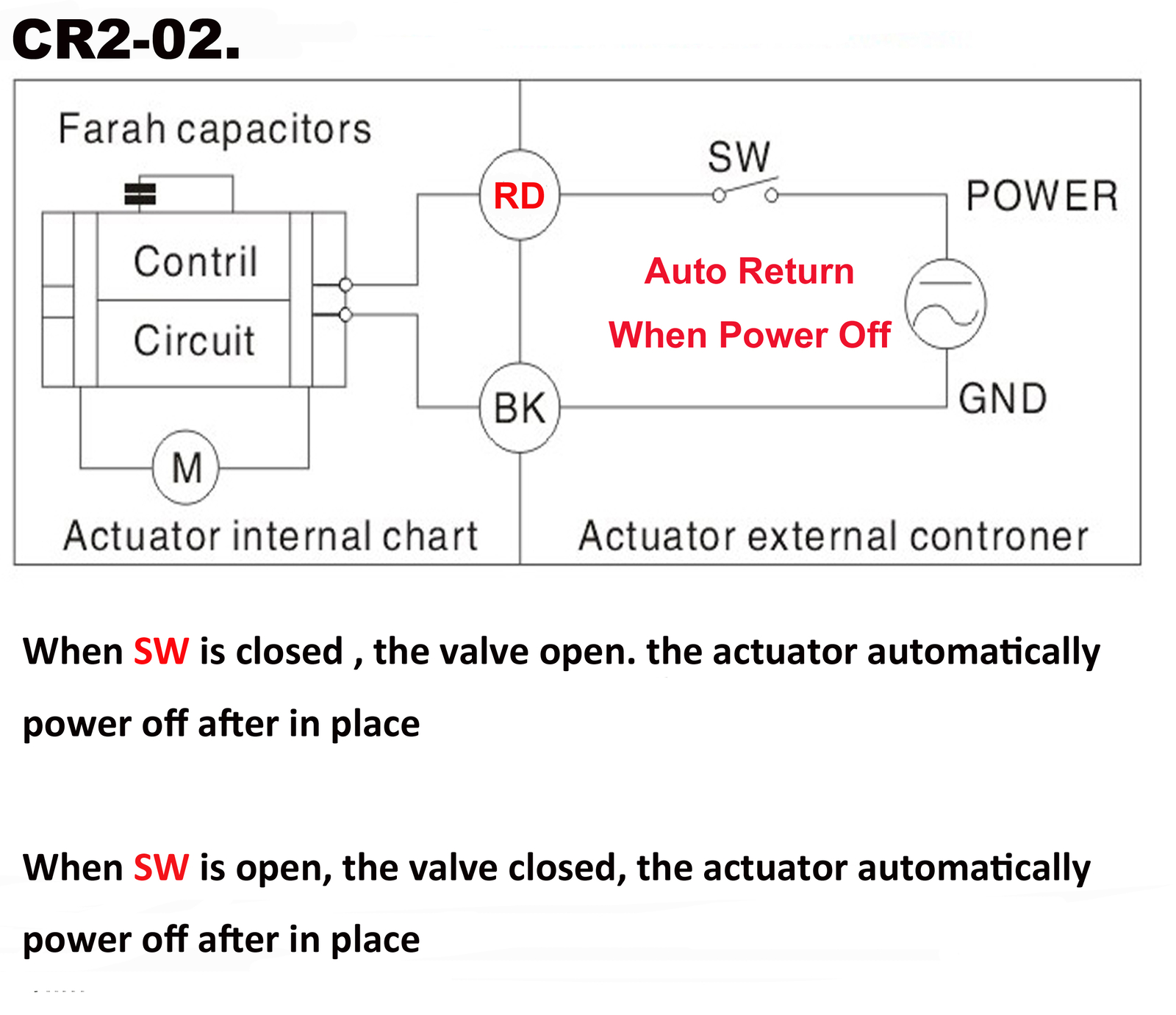

◎Actuator Installed With U.S. 3 Pin Plug, 1 Meters Length of Electrical Cable; ◎2 Way 1/2" NPT Full Bore 15mm(0.59in) Stainless Steel Lead Free Valve Body, Suitable For Portable Water; ◎Wide Range Working Voltage Design, Will Working At Voltage From 110-240Volt AC, Including 115V/120V/220V/240VAC; ◎Limit Switches Built-In, Auto Cut Off Current When Arrived At Place(0Ma When Fully Open or Fully Closed),Saving And Long Life; ◎Only Connecting 2 Wires(Red/Black) To The Power Supply Then The Valve Can Be Opened, Normally Closed Design(Built-In Capacitor Return), Will Return To Original Position When Power Off/Power Failed; Product Overview: ◎ Dimension:1/2 Inch DN15; ◎ Maxmum Working Pressure: 150PSI; ◎ Medium: Water(Include Portable Water), Gas, Oil; ◎ Voltage: 110-230Volt AC Both 50 and 60Hz; ◎ Working Current: Max 0.5Amps When Open; ◎ Cable Length: 0.5 Meters; ◎ Medium Temperature:-5° ~ 100°C; ◎ Manual Override:No; ◎ Indicator:Yes; ◎ Open and Closed Time:≤5sec; ◎ Wiring: CR2-02. Package Include： 1* Full Set of 1/2" Stainless Steel Ball Valve Application: ◎HVAC; ◎Water Treatment; ◎Chemical Process; ◎Small Industrial Equipment For Automatic Control; ◎Replacing Solenoid Valve, Particularly When Solenoid Cannot Work Reliably; ◎Automatic Control Systems; ◎Efficient Water-Saving, Water Equipment; ◎Solar Hot Water Project; ◎Regular Watering The Flowers, Timing Humidifying, Timing of Drainage of Air Compressor. Features: ◎Smart Shape, Perform Reliably, Large Output Torque, As Long As 50000-100000 Times , Convenience For All Kinds Of Requirements; ◎Float Ball design, No Leak, Large Flow, The Valve is Bi-directional Ball Valve , Regardless of Inlet And Outlet , Most Suitable for Heavy Dirt and Long Time No Action; ◎The Conditions That Solenoid Valve Can Not Be Worked; ◎High Protection Class, Can Be Worked In Most Conditions; ◎POM Cooperate With Metal Gear, The POM Gear is Used in High-Speed Level to Reduce Noise, At The Same Time Metal Gear is Applied At The Low-Grade To Ensure The Reliability of The Gear; ◎Electrical and Mechanical Limit Integrated Design, Accurate Localization ,High consistency , Put an End to Swing of Valve.
