NIBCO 885 2 DWV P-Trap,Cast Bronze,2″ Tube,CxC 36N559

Specifications

DWV P-Trap, Application Air, Non-Potable Water, Fitting Side A Connection Type Cup, Fitting Side B Connection Type Cup, Fitting Side A Copper Tube Size 2 in, Fitting Side B Copper Tube Size 2 in, Fitting Material Cast Bronze, Fitting Side A Tube Outer Diameter 2 1/8 in, Fitting Side B Tube Outer Diameter 2 1/8 in, Maximum Operating Pressure 395 psi @ 200 Degrees F, Maximum Operating Temperature 400 Degrees F, Specific Fitting Shape P-Trap, Standards ASME B16.23, ASTM B584 Alloy C84400, ISO 9001 Featuring a higher pressure rating than most wrot copper fittings, this NIBCO DWV P-trap is suitable for use in commercial and residential drain, waste, and vent systems. The fitting provides a water seal to help prevent unwanted gases from entering the dwelling. P-trap is dezincification resistant.

Related Items

Backflow Preventer Assembly, Watts, 1 in Connection, FIP, Bronze

Nibco 7333 1/2 Fitting Union, Cast Bronze, C X Fnpt

NIBCO 7334LF 3/4 Union,LL Cast Bronze,3/4″ Tube,CxMNPT 5GEY9

Zoro Select 24W565 Union, Copper, Cup 3/4 In, Mnpt 3/4 In, 24W565

Watts Washing Machine Shutoff Valve, 1/2 Inch, Bronze 175C. SB6

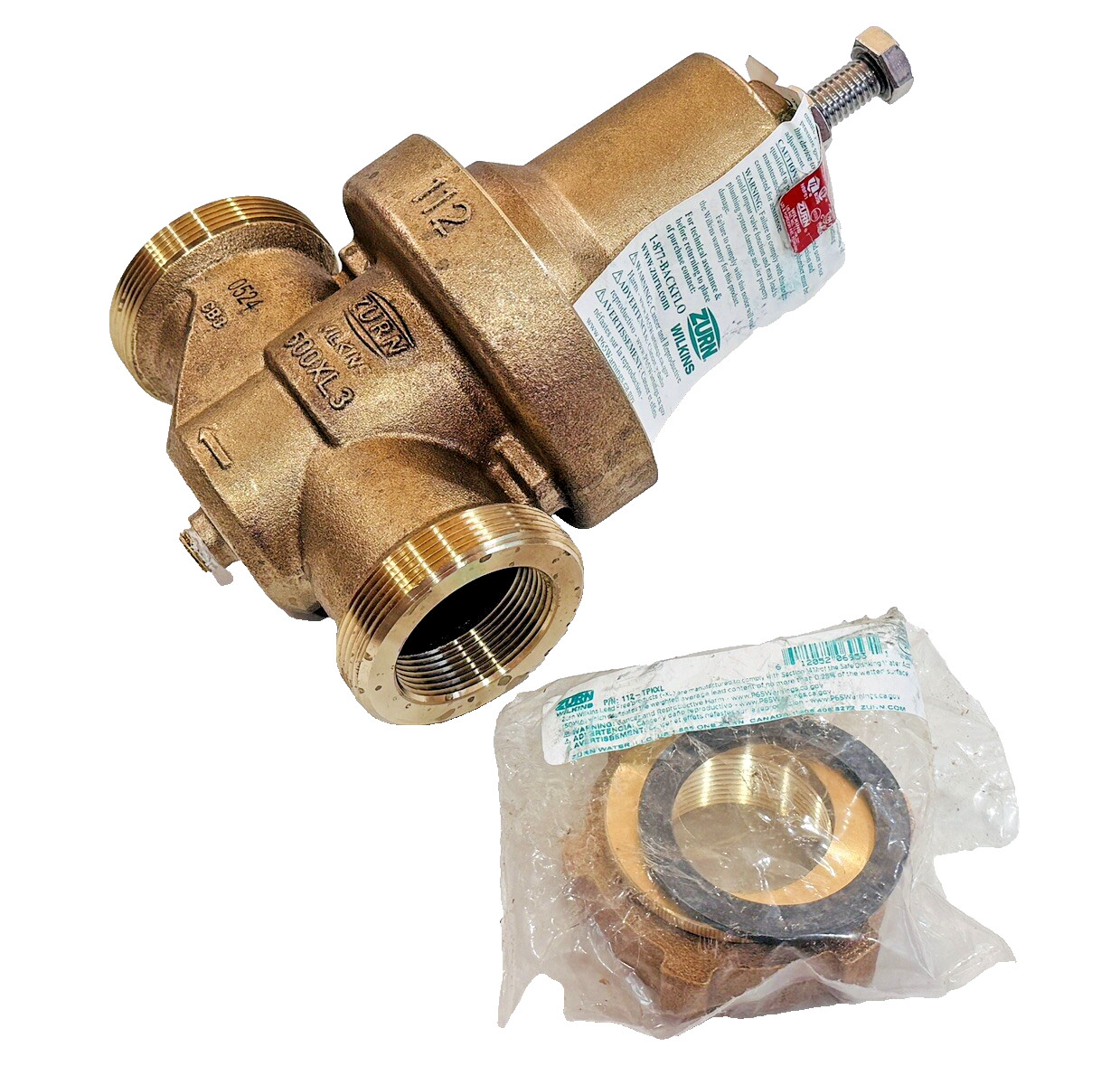

1-1/2″ Zurn Wilkins 112-500XL3 Pressure Reducing Valve, Lead Free, Single Union
