PNEUMADYNE INC EB35 Male Connector,10-32×5/32 In Barb,Brass 5NJD8

Specifications

Straight Male Connector, Fitting Side A Connection Type Barbed, Fitting Side B Connection Type UNF, Fitting Side A Tube Inner Diameter 5/32 in, Fitting Material Brass, Finish/Coating Nickel-Plated, Overall Length 11/16 in, Specific Fitting Shape Straight Adapter, Application Air, Maximum Operating Pressure 125 psi, Maximum Operating Temperature 160 Degrees F, Hex Size 5/16 in, Minimum Operating Temperature 20 Degrees F, Thread Size B 10-32 This compact, 1-pc. push-on fitting quickly connects polyethylene tubing for use in environmental pneumatic controls and other low-pressure applications with water and air. The barbs help provide secure, leaktight connections.

Related Items

PARKER 28-8-4 Male Connector,1/2 In Tube Size,Brass 2GUR3

Pneumadyne M20-250-3-90 Pipe Manifold Fitting, Aluminum, 3/8 In

Pneumadyne M40-750-2 Manifold, 2 Outlets, Outlet Size 3/4″, 6″ L

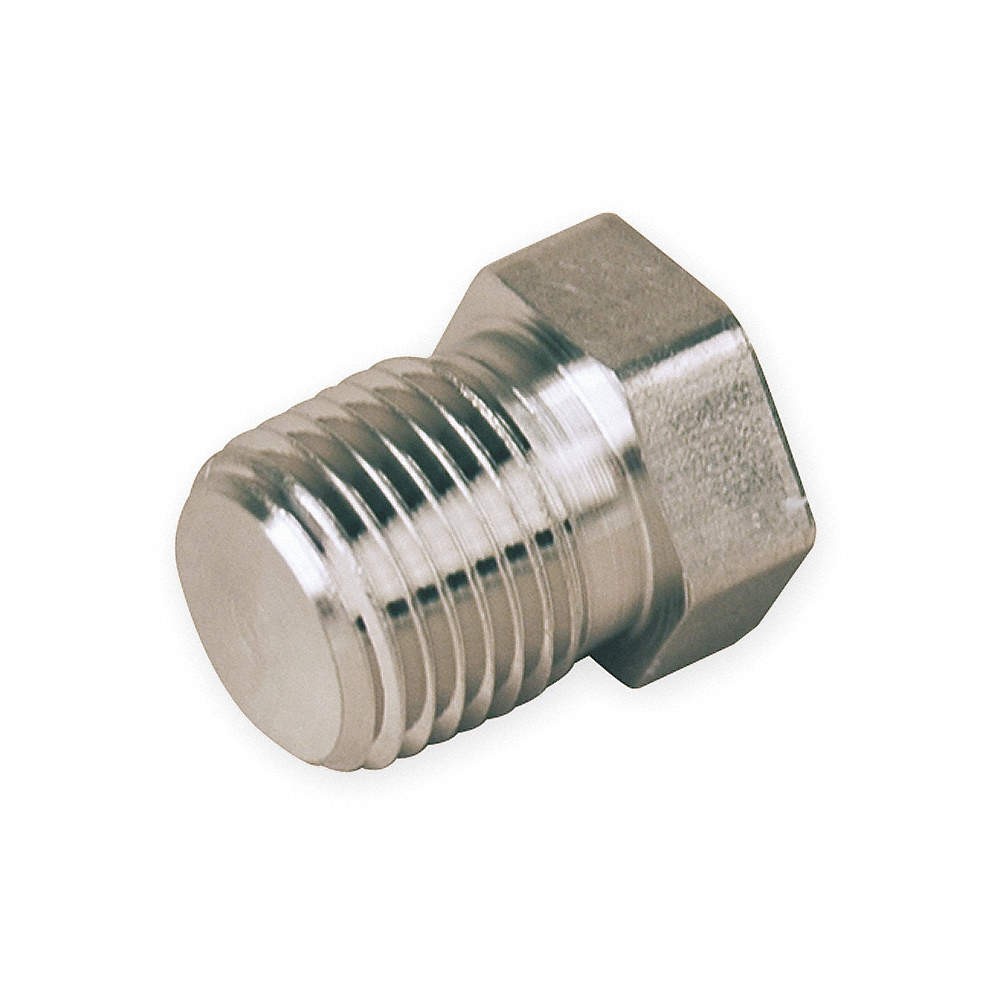

PARKER 4 PH-S Hex Head Plug, Carbon Steel,1/4 in,MNPTF 1DGT8
